Crown 4-1/4" - 56

Crown 4-1/4" - 56

Crown 4-1/4" - 56

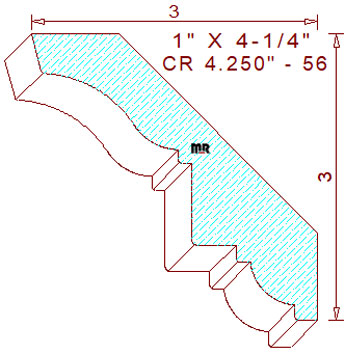

This intricate 4-1/4" - 56 crown mould measures 4.243" wide by 1.000" thickness. The ornate profile is comprised of a 7/16" tall beveled line on top, connected to a shallow two tangent radius cyma recta with three different sized sets of stepped lines in the center, attached to a 33/64" radius ovolo in the bottom portion of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3" tall and wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.649
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.649
Top Cutter Head
Width: 4.250
Depth of Cut: 0.579
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$293.00
Not Needed
Total:
$592.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$313.00
Not Needed
Total:
$631.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$333.00
Not Needed
Total:
$670.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
