Crown 4-1/4" - 49
Crown 4-1/4" - 49

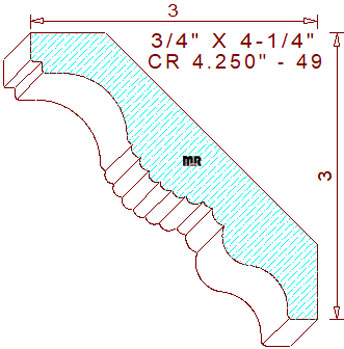

This opulent 4-1/4" - 49 crown mould measures 4.250" width by .750" thickness, permitting the use of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The beaded terminating profile contains a 19/64" tall vertical line with a 1/8" by 1/8" perpendicular notch on the top left. The rabbet connects to a 43/64" concave semicircle that transitions into a series of multiple decorative half circles in the center. The lower section retains a two tangent radius ogee and a 5/16" horizontal line segment on the bottom right side of the design. The set spring angles are at
forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3" tall with a projection of 3" across the top.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.554
Top Cutter Head
Width: 4.250
Depth of Cut: 0.333
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
