Crown 4-1/4" - 46
Crown 4-1/4" - 46

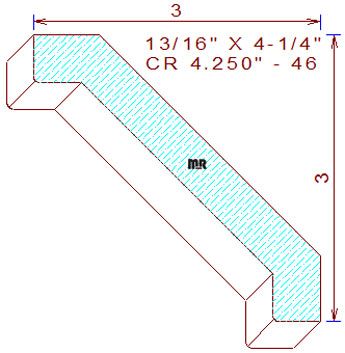

This 4-1/4" - 46 shaker-style crown mould measures 4.250" wide by .812" thickness. The symmetrical squared steps in profile measure 1/2" tall x 1/2" wide at the top and the bottom of the detail with a 2-27/32" broad splay face in the middle of the pattern. When correctly installed, the height and projection are identical at 3" tall and wide, the spring angles are fixed at forty-five degrees, and the points are located on the same level plane, providing superior hold down while milling.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.486
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.486
Top Cutter Head
Width: 4.250
Depth of Cut: 0.421
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
