Crown 4-1/4" - 45

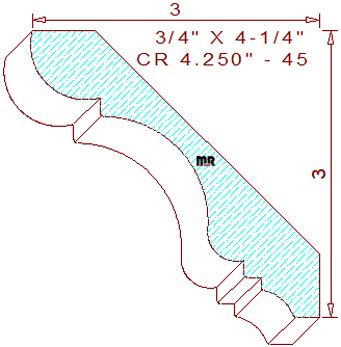

This designer 4-1/4" - 45 crown mould measures 4.243" width by .750" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber on an industrial moulder. The custom supporting profile contains a 37/64" convex arc with a 13/64" vertical line on the top left. That fillet connects to a 1-3/32 concave semicircle tangent to a 5/16" convex arc with two 11/64" perpendicular lines, merged to a 7/16" cove and a 9/32" horizontal line segment on the bottom right side of the pattern. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3" tall with a projection of 3" across the top.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide enough blend areas on the knives, so you will never realize where one cutter begins or ends. These specific design features will substantially increase yield during the milling process.
