Crown 4-1/4" - 35
Crown 4-1/4" - 35

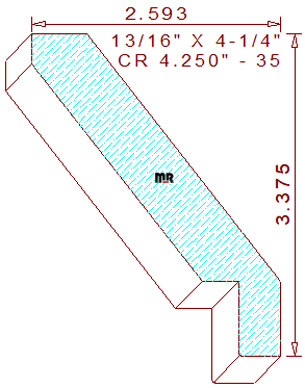

This shaker-style 4-1/4" - 35 crown mould measures 4.250" wide by .812" thickness, allowing the detail to be milled sprung (laying horizontally flat) out of four-quarter lumber. The lovely terminating profile is comprised of a 5/16" tall vertical line at the top left. It's connected to a 2-57/64" long splay-faced angled line in the center, joined to a 3/8" wide by 25/32" tall perpendicular notch with a 7/16" broad horizontal line on the bottom of the design. The spring angles are fixed at
thirty-eight and
fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-3/8" tall with a projection of 2-19/32" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.451
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.481
Top Cutter Head
Width: 4.250
Depth of Cut: 0.465
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
