Crown 4-1/4" - 24

Crown 4-1/4" - 24

Crown 4-1/4" - 24

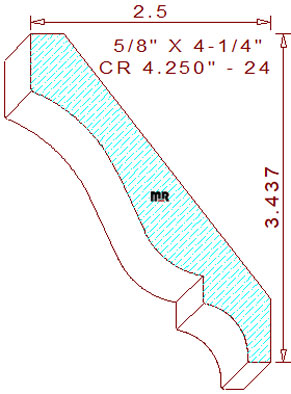

This conventional 4-1/4" - 24 crown mould measures 4.250" width by .625" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber on a commercial moulder. The standard terminating profile contains a 19/32" tall vertical fillet on the top left, attached to a 1-11/16" radius concave semicircle tangent off of a 13/16" convex arc creating the free-flowing cyma recta in the center. The s-shaped curvature merges with a 19/64" vertical line segment and a 35/64" cove with a 17/64" full horizontal line on the bottom right side of the design. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 3-7/16" tall with a projection of 2-1/2" across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.268
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.411
Top Cutter Head
Width: 4.250
Depth of Cut: 0.357
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$293.00
Not Needed
Total:
$616.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$313.00
Not Needed
Total:
$655.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$333.00
Not Needed
Total:
$694.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
