Crown 4-1/4" - 17
Crown 4-1/4" - 17

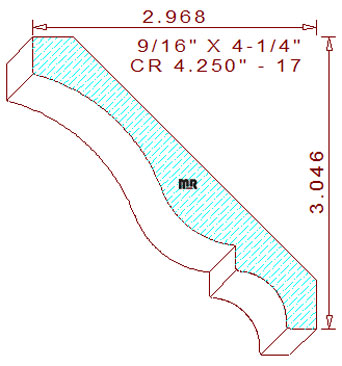

This beautiful 4-1/4" - 17 crown mould measures 4.250" wide by .562" thickness, allowing the detail to be machined from four-quarter lumber. The asymmetrical profile is comprised of two tangent radiuses creating a cyma recta in the center, attached to a 25/64" vertical line on top and a 17/64" vertical fillet below, connected to a 17/32" radius cavetto with a 5/16" wide horizontal line segment at the bottom of the pattern. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 3-3/64" tall with a projection of 2-31/32" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.297
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.357
Top Cutter Head
Width: 4.250
Depth of Cut: 0.327
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$123.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$133.00
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.50
(Template not needed)
