Crown 4-1/4" - 12

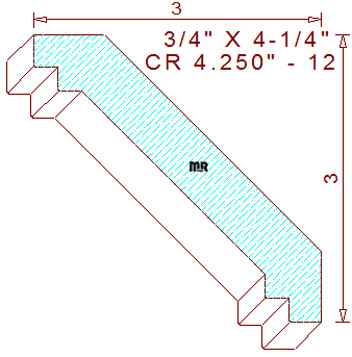

This beveled 4-1/4" -12 crown mould measures 4.250" wide by .750" thickness. The symmetrical profile is comprised of a 2-45/64" broad splay face in the center of the pattern, flanked by a 1/4" wide by 1/4" deep notched fillet, attached to an 11/32" tall vertical fillet on top and an 11/32" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees. Search our bevels category by degree for a back bevel cutter appropriate for this shaker crown design. These bevels set the installed height and projection at an identical dimension of 3" tall and wide.
