Crown 4-3/16" - 3

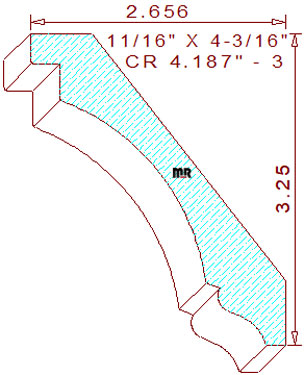

This elegant 4-3/16" - 3 crown mould measures 4.196" width by .687" thickness, necessitating the use of a 4-7/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The embellished terminating profile contains a 3/16" tall vertical line on the top left. The line segment connects to a 5/16" wide by 25/64" tall perpendicular notch merged with a 2-23/64" radius cove in the center. The remaining portion of the pattern consists of a 5/32" angled segment joined to a two-tangent radius cyma reversa with a 7/32" horizontal line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-1/4" tall with a projection of 2-21/32" across the top.

Need this profile template and a set of molding cutters quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras; thousands of compelling designs help match your creative style.
