Crown 4-3/16" - 2

Crown 4-3/16" - 2

Crown 4-3/16" - 2

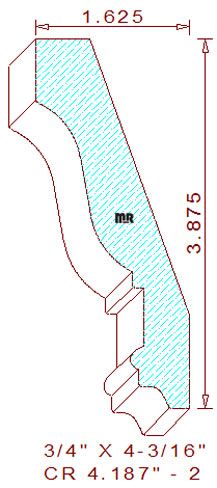

This unique 4-3/16" - 2 crown mould measures 4.187" wide by 3/4" thickness. The profile comprises a tall vertical fillet at the top connected to cyma recta, a stepped fillet, a flat area (rope molding option), a teardrop bead, and a small cove at the bottom of the pattern. When installed, the height becomes 3-7/8" tall with a projection of 1-5/8" wide, the spring angles are fixed at twenty and seventy degrees, and three design points are purposely positioned on the same level plane for optimal hold-down conditions while milling the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.532
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.334
Top Cutter Head
Width: 4.188
Depth of Cut: 0.541
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$289.90
Not Needed
Total:
$613.40
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$309.65
Not Needed
Total:
$652.15
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$329.40
Not Needed
Total:
$690.90
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
