Crown 4-1/16" - 9

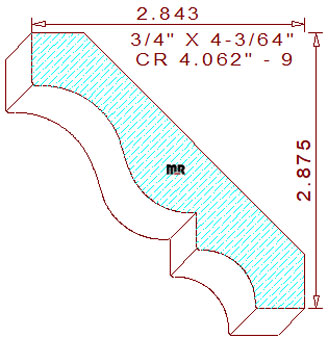

This classic 4-1/16" - 9 crown mould measures 4.044" wide by .750" thickness, permitting the detail to be cut sprung (laying horizontally flat) out of four-quarter lumber. The traditional profile is composed of a 35/64" tall vertical line on the top left, connected to a free-flowing two tangent radius cyma recta in the center, attached to a 25/64" vertical line with a 9/16" cavetto and a 33/64" broad line on the bottom of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as setting the installed height at 2-7/8" tall with a projection of 2-27/64" wide.
