Crown 4" - 57
Crown 4" - 57

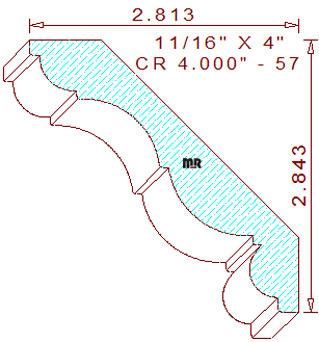

This decorative 4" - 57 crown mould measures 4.000" wide by .687" thickness. The attractive profile comprises a series of connected half-round circles, horizontal and vertical fillets, arcs, and coves, with an ovolo positioned in the upper portion of the design and an offset torus in the lower section of the pattern. The spring angles are fixed at forty-five degrees; search our
bevels category by this degree to find a set of back-bevel cutters appropriate for this beautiful crown design these specific back bevels set the installed height at 2-27/32" tall with a projection of 2-13/16" wide. We also have a comparable profile
crown-4.000-29 in the same size; you may want to review and consider this detail for your current woodworking application.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.531
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.553
Top Cutter Head
Width: 4.000
Depth of Cut: 0.361
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
