Crown 4" - 56

Crown 4" - 56

Crown 4" - 56

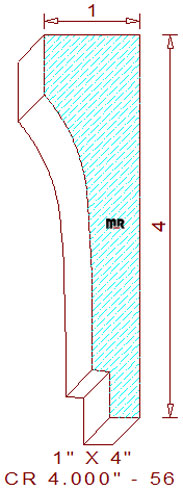

This 4" - 56 flat crown mould measures 4.000" tall by one-inch thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The contemporary profile is composed of a 5/8" tall vertical line segment at the top, connected to a 2-7/8" wide two tangent radius congee, attached to a 1/2" tall by 3/16" wide notch leaving a 5/16" broad horizontal line on the bottom of the pattern. We offer a couple of other similar style profiles you may want to review and consider, crown 4.000" - 51 and crown 4.000" - 54.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.687
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.50
Not Needed
Total:
$299.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.50
Not Needed
Total:
$318.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
Not Needed
Total:
$337.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
