Crown 4" - 34
Crown 4" - 34

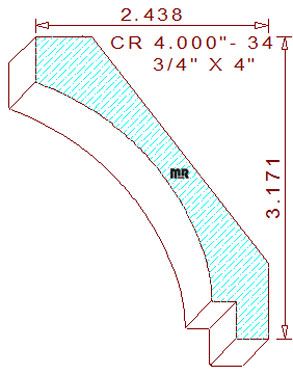

This cove-style 4" - 34 crown mould measures 4.000" wide by .750" thickness. The profile is comprised of a .477" tall vertical fillet at the top, a 2.857" radius cavetto in the center, and a .250" wide by .394" tall, notched fillet with a .338" horizontal flat portion at the bottom of the design. When installed the height becomes 3-11/64" tall with a projection of 2-7/16" wide, the spring angles are set at thirty eight and fifty two degrees with two points of the detail positioned on the same level plane for excellent hold conditions during the milling process.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.463
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.491
Top Cutter Head
Width: 4.000
Depth of Cut: 0.433
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
