Crown 3-29/32" - 4

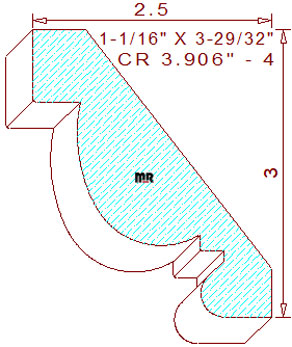

This 3-29/32" - 4 Greek echinus crown mould measures 3.903" width by 1.062" thickness, requiring a 4-3/16" blank of five-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The old-world terminating profile comprises 3/4" tall by 1/2" broad perpendicular lines on the top left. The squared lines connect to a 1-41/64" convex arc tangent off a 29/32" convex semicircle, forming the elliptical-shaped center. The remaining portion comprises an 11/64" tall by 1/4" broad squared lines with a 7/64" sunk fillet joined to an elongated 1/2" half-bead on the design's bottom right corner. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3" tall with a 2-1/2" projection across the top.

You will be able to manufacture high-speed steel or carbide molding knives literally within minutes after downloading this beautiful pattern from the purchase DXF file link below. Take a moment to glance at our updated tooling and supplies catalog high-quality products we supply for your moulder and tool room. We offer competitive pricing and fast shipping options.
