Crown 3-3/4" - 19
Crown 3-3/4" - 19

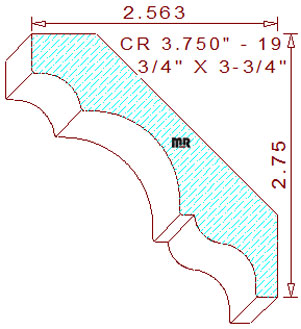

This innovative 3-3/4" - 19 crown mould measures 3.750" wide by .750" thickness. The double concave design is comprised of a 15/16" radius cavetto in the center, connected to a 27/64" radius cove with a 13/32" vertical fillet at the top, the lower section of the design consists of a cyma reversa attached to a 3/32" wide horizontal fillet above and a 9/32" horizontal fillet on the bottom of the pattern. The spring angles are fixed at forty-five degrees; search our
bevels category by this degree to find a back bevel cutter appropriate for this crown/cove moulding design, these specific back bevels set the installed height at 2-3/4" tall with a projection of 2-9/16" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.609
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.483
Top Cutter Head
Width: 3.750
Depth of Cut: 0.409
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$87.50
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$94.50
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$101.50
(Template not needed)
