Crown 3-3/4" - 17

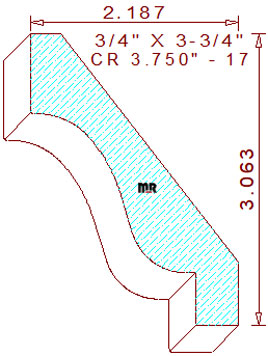

This beautiful 3-3/4" - 17 crown mould measures 3.750" wide by .750" thickness, enabling the detail to be milled from four-quarter lumber. The classy profile is comprised of three tangent radius arcs creating a cyma recta in the center, attached to a 53/64" tall vertical line in the upper left portion of the pattern, the lower section consists of a 9/16" tall by 7/16" wide perpendicular lines. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-1/16" tall with a projection of 2-3/16" wide. We offer an alternative profile in the same width but with different inner dimensions for your review and consideration, crown 3.750" - 20.
