Crown 3-3/4"
Crown 3-3/4"

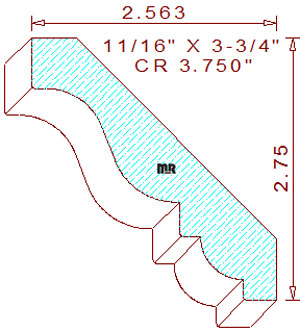

This stylish 3-3/4" crown mould measures 3.750" wide by .687" thickness. The gorgeous terminating profile is comprised of a cyma recta consisting of a 5/8" radius arc tangent off of an 11/16" radius arc, flanked by a 17/32" tall vertical fillet on top and a 23/64" tall fillet below, connected to a beautiful 7/16" radius ovolo, attached to a 23/64" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees. Search our
bevels category by this degree to find a back bevel cutter appropriate for this attractive crown design, these specific back bevels set the installed height at 2-3/4" tall with a projection of 2-9/16" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.332
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.451
Top Cutter Head
Width: 3.750
Depth of Cut: 0.437
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
