Crown 3-11/16" - 6

Crown 3-11/16" - 6

Crown 3-11/16" - 6

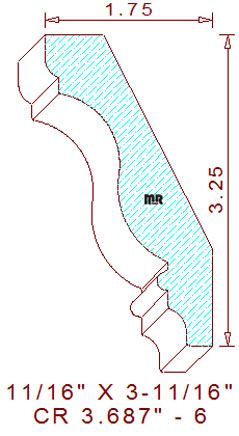

This unique 3-11/16" - 6 crown mould measures 3.687" wide by .687" thick. The profile consists of a combination of beads, a French curve, small fillets, and a cove on the bottom on the bottom of the pattern. The installed height becomes 3-1/4" tall with a projection of 1-3/4" wide, the spring angles are fixed at 27 and 63 degrees to assist in holding the product down on the bed plates during the milling process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.460
Top Cutter Head
Width: 3.688
Depth of Cut: 0.346
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$273.78
Not Needed
Total:
$606.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$291.53
Not Needed
Total:
$643.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$309.28
Not Needed
Total:
$680.28
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
