Crown 3-5/8" - 18
Crown 3-5/8" - 18

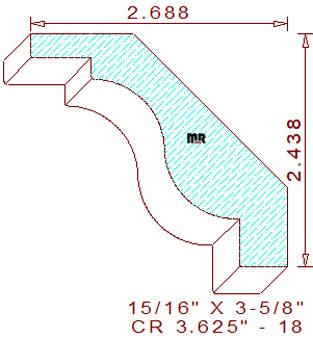

This elegant 3-5/8" - 18 crown mould measures 3.625" wide by .937" thick requiring five-quarter lumber for milling. The beautiful profile is composed of 5/8" wide by 1/4" tall squared lines joined to a 7/32" tall vertical line on top, attached to two 3/4" tangent radiuses creating the cyma recta in the center, connected to a 1/2" tall by 1/2" broad squared lines at the bottom of the design. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 2-7/16" tall with a projection of 2-11/16" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.777
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.600
Top Cutter Head
Width: 3.625
Depth of Cut: 0.506
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
