Crown 3-5/8" - 10

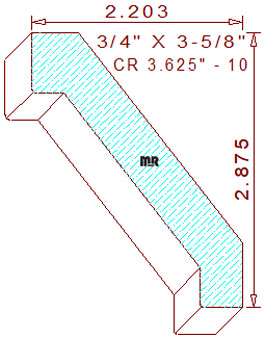

This 3-5/8" - 10 shaker crown mould measures 3.625" wide by .750" thickness, permitting the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The terminating splay-faced profile is comprised of an 11/32" wide by 5/8" tall squared fillet on top, the lower portion of the design consists of a 7/16" wide by 27/64" tall squared fillet, connected by a straight beveled line in the center. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevel cuts set the installed height at 2-7/8" tall with a projection of 2-13/64" wide.
