Crown 3-17/32" - 8
Crown 3-17/32" - 8

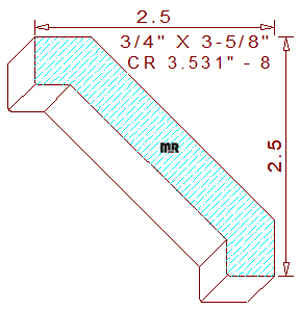

This 3-17/32" - 8 shaker crown mould measures 3.531" wide by .750" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The splay-faced symmetrical profile is composed of two 3/8" by 1/2" squared fillets on the top and bottom of the pattern, they are connected by a 2-19/64" broad forty-five-degree angled line. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height at 2-1/2" tall with a projection of 2-1/2" wide. We have a few other profiles of different sizes available for your review and consideration,
crown 3.000", crown 3.375" and
crown 3.500" - 36.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.413
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.413
Top Cutter Head
Width: 3.531
Depth of Cut: 0.430
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
