Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Crown 3-15/32" - 2

Crown 3-15/32" - 2

Crown 3-15/32" - 2

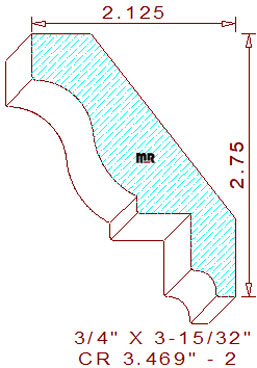

This distinguished 3-15/32" - 2 crown mould measures 3.469" wide by .750" thickness, allowing the detail to be milled from four-quarter lumber. The intricate profile is composed of a 31/64" tall vertical line on the top left, connected to a free-flowing two tangent radius cyma recta with a 3/16" vertical line in the center, attached to a 9/16" wide by 19/32" tall notch for inserting a piece of rope or dentil moulding, joined to a 7/32" cove with a 13/64" wide flat line at the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-3/4" tall with a projection of 2-1/8" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.469
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.488
Top Cutter Head
Width: 3.469
Depth of Cut: 0.427
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$253.95
Not Needed
Total:
$577.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$270.83
Not Needed
Total:
$613.33
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$287.70
Not Needed
Total:
$649.20
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
