Crown 3-3/8" - 18

Crown 3-3/8" - 18

Crown 3-3/8" - 18

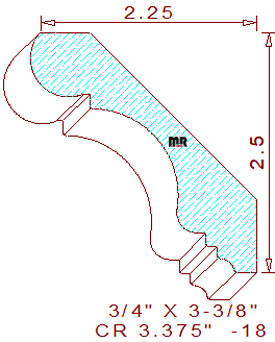

This elegant 3-3/8" - 18 crown mould measures 3.367" wide by .750" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The visually stunning supporting profile is composed of a 41/64" tall bullnose on the top left. It's connected to a 1/16" wide sunk fillet and a 5/32" vertical segment transitioning into a unique French style curvature in the center, joined to two 1/8" by 1/8" steps and a 9/64" cove with a 15/64" wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height at 2-1/2" tall with a projection of 2-1/4" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.373
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.541
Top Cutter Head
Width: 3.375
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$249.25
Not Needed
Total:
$529.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$265.75
Not Needed
Total:
$565.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$282.25
Not Needed
Total:
$600.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
