Crown 3-1/4" - 14

Crown 3-1/4" - 14

Crown 3-1/4" - 14

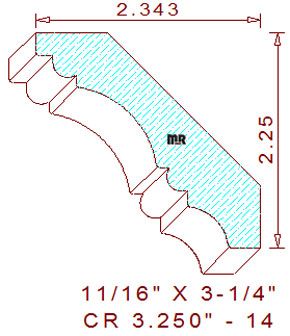

This attractive 3-1/4" - 14 crown mould measures 3.250" wide by .687" thickness. The profile is comprised of a cavetto positioned in the center. It's flanked by an ovolo on top with another ovolo and a smaller cavetto in the lower portion of the pattern. With the spring angles fixed at forty-five degrees, the installed height becomes 2-1/4" tall and a 2-11/32" wide projection. Three points of the design were intentionally placed on the same level plane, creating superior hold-down conditions while milling the pattern. The two beads were recessed to eliminate unsightly burnish marks that the machine pressure shoe element may leave.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.530
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.462
Top Cutter Head
Width: 3.250
Depth of Cut: 0.318
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$243.00
Not Needed
Total:
$523.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$259.00
Not Needed
Total:
$558.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$275.00
Not Needed
Total:
$593.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
