Crown 3-5/32"
Crown 3-5/32"

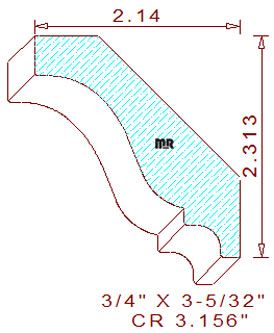

This 3-5/32" colonial crown mould measures 3.156" wide by .750" thickness. The profile comprises a large cyma recta flanked by vertical fillets with an attached cavetto and a horizontal fillet positioned at the bottom of the design. The spring angles are fixed at forty-five degrees, which sets the installed height at 2-5/16" tall with a projection of 2-9/64" wide. Two high points in the design are intentionally positioned on the same level plane, creating superior hold-down conditions while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.468
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.594
Top Cutter Head
Width: 3.156
Depth of Cut: 0.344
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
