Crown 3-1/8" - 2
Crown 3-1/8" - 2

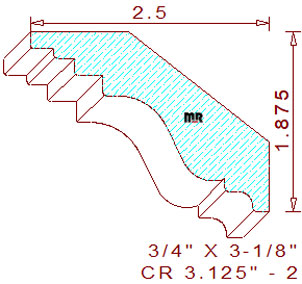

This fancy 3-1/8" - 2 crown mould measures 3.125" width by .750" thickness, demanding a 3-3/8" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The elegant terminating pattern contains three different-sized sets of perpendicular notches on the upper left. The lower cut-out connects to a graceful two-tangent radius cyma recta in the center. The s-shaped curvature joins a 1/8" vertical fillet merged with a 5/32" congee with an 11/64" broad flat line on the design's bottom right corner. The fixed spring angles are set at
thirty-eight and
fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to locking in the height at 1-7/8" tall with a 2-1/2" projection across the top.
Custom-made elegance is a phrase used to define thousands of our moulding profile's beauty, style, and artisanship. Suppose you own a recently built house or older dated residence. In that case, we have the professional ability, knowledge, and experience to create visually stunning details to complement the architectural design of your elegant home and office.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.568
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.629
Top Cutter Head
Width: 3.125
Depth of Cut: 0.275
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
