Crown 3-1/16" - 7

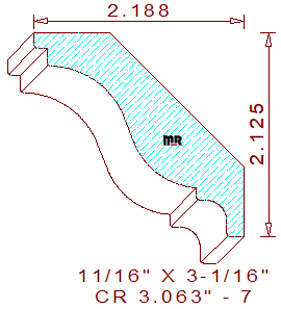

This 3-1/16" - 7 colonial crown mould measures 3.050" width by .687" thickness, requiring a 3-5/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The old-world terminating profile comprises a 5/32" vertical fillet joined to a 3/16" tall by 9/64" wide perpendicular notch on the top left. The small cut-out connects to a 27/32" concave semicircle tangent to a 3/4" convex arc forming the lovely cyma recta in the center. The lower portion consists of a 9/64" vertical fillet attached to a 7/32" elongated cove with an 11/64" flat line segment on the design's bottom right corner. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 2-1/8" tall with a 2-3/16" projection across the top.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.
