Crown 3" - 30
Crown 3" - 30

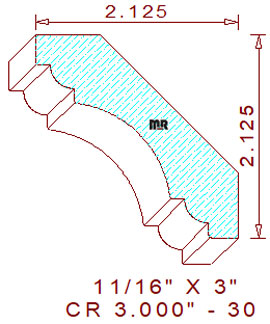

This creative 3" - 30 crown mould measures 3.000" wide by .687" thickness, allowing the detail to be machined from four-quarter lumber. The decorative symmetrical profile is comprised of a 1-1/8" radius cove in the center, attached to a small 1/4" radius ovolo with 5/16" tall and wide straight lines on both the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-1/8" tall and wide.
We have a family of similar profiles with different widths, heights, and projections for your review and consideration on your next trim project, crown 3.594" - 9, crown 4.000" - 38, crown 4.250" - 33, crown 4.500" - 1, crown 4.950" - 12 and crown 7.250" - 10. You will be able to manufacture high-speed steel or carbide profile knives literally within minutes after downloading this beautiful moulding pattern. Choose any of our quality high-speed knife steels or carbide; we generally can ship these items the same day.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.483
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.483
Top Cutter Head
Width: 2.000
Depth of Cut: 0.297
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$186.00
Not Needed
Total:
$476.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$197.00
Not Needed
Total:
$506.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$213.50
Not Needed
Total:
$551.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
