Crown 3" - 20

Crown 3" - 20

Crown 3" - 20

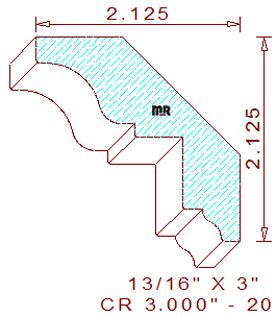

This distinctive 3" - 20 crown mould measures 3.000" wide by .812" thickness, the profile is specifically designed to inset a piece of dentil or rope moulding, and some emerald green marble or corian squares would add an exquisite look to this pattern. The detail comprises a cyma recta in the upper portion attached to a small fillet and a 3/4" tall by 1/2" wide notched fillet. The lower portion has a compact cyma reversa or ogee flanked by two horizontal fillets. When installed the height and projection have identical dimensions at 2-1/8" tall and wide, the spring angles are set at forty five degree with two even points positioned on the same level plane producing excellent hold down conditions during the milling process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.635
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.635
Top Cutter Head
Width: 3.000
Depth of Cut: 0.514
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$230.50
Not Needed
Total:
$530.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$245.50
Not Needed
Total:
$564.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$260.50
Not Needed
Total:
$598.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
