Cove Moulding 5-21/32" - 1

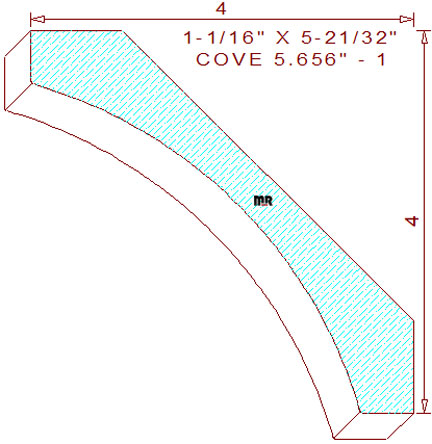

This elegant cove moulding 5-21/32" - 1 measures 5.657" wide by 1.062" thickness, necessitating the use of five quarter lumber for milling on an industrial moulder. The beautiful symmetrical profile is composed of a 9/16" tall vertical line segment on the top left, joined to a five inch radius cove in the center, connected to a 9/16" wide horizontal line segment on the lower right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 4" tall with a projection of 4" wide.

We're delighted you found a beautiful profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all consummate professionals.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.687" / Depth of Cut = .623" (top knives.)

Thickness = 1.062" / Depth of Cut = .679" (right blades) & .679" (left cutters.)
