Cove Moulding 5-1/4"

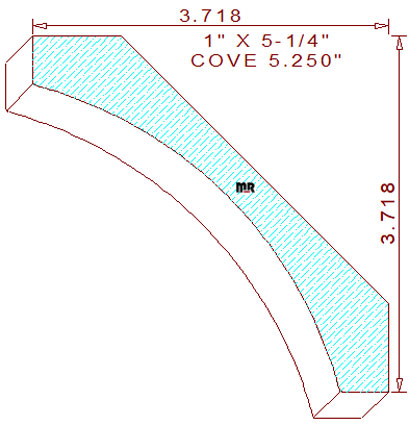

This designer cove moulding 5-1/4" measures 5.250" wide by 1.000" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of five quarter lumber. The symmetrical terminating profile comprises a 4-1/2" radius cavetto in the center. The center is attached to a 1/2" tall vertical line segment on the top portion and a 1/2" wide horizontal line on the bottom of the design. The spring angles are forty-five degrees, these back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-23/32" tall with a projection of 3-23/32" wide.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our wide variety of creative moulding knife designs for years; we trust you will find that special moulding profile to enhance the architectural style of your home. If you have questions or concerns about knife grinding procedures for any of our moulding designs, please contact us we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, please enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.250" / Depth of Cut = .605" (top knives.)

Thickness = 1.000" / Depth of Cut = .665" (right blades) & .665" (left cutters).
