Cove Mould 4-1/4" - 5

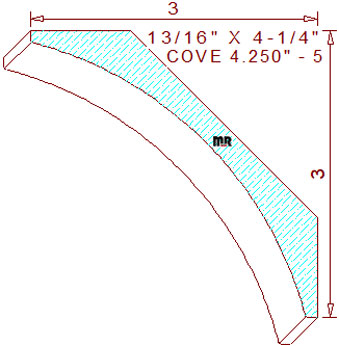

This lovely cove mould 4-1/4" - 5 measures 4.243" width by .812" thickness, necessitating a 4-1/2" wide blank of four-quarter lumber for milling on a commercial moulder. The symmetrical terminating profile contains a four-inch radius concave semicircle in the center. The cove gets flanked by a 1/8" tall vertical fillet on the top left and a 1/8" horizontal line segment on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed. These specific angles lock in the height at 3" tall with a 3" projection across the top.

Check out a few other profile designs for different rooms in your beautiful home or office. Our moulding catalog has over fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.250" / Depth of Cut = .547" (top knives).

Thickness = .812" / Depth of Cut = .738" (right knives) & .738" (left cutters).
