Cove Moulding 3-29/32" - 4

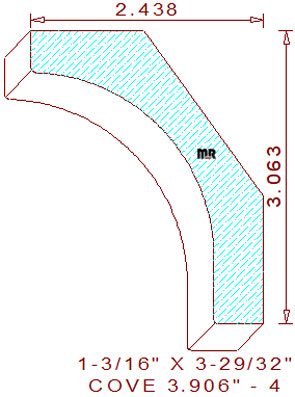

This lovely cove moulding 3-29/32" - 4 measures 3.911" wide by 1.187" thickness, requiring a 4-3/16" wide blank of six-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The a-symmetrical terminating profile comprises a 1-15/16" radius cavetto tangent off a vertical line segment in the middle. The center attaches to a 7/16" vertical line on the upper left with a 33/64" wide horizontal fillet in the lower right corner. The fixed spring angles are thirty-six and fifty-four degrees; the back-cuts are in the downloadable DXF file below. These specific angle positions lock in the installed height at 3-1/16" tall with a 2-7/16" projection across the top.

Ever notice why some moldings look better than other trim patterns in homes, offices, and older buildings. You may want to review our article on knife marks per inch. Read about how machine feed rates and rpm of cutter heads can directly determine the quality of the products you produce. Following or exceeding industry standards will allow your company to lead the way in molding artisanship.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.937" / Depth of Cut = .759" (top knives).

Thickness = 1.187" / Depth of Cut = .781" (right blades) & 1.125" (left cutters).
