Cove Moulding 3-29/32" - 2

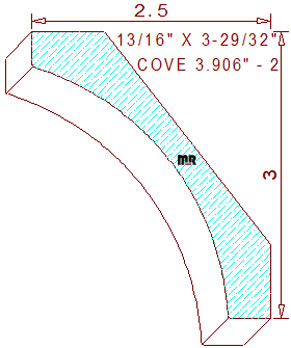

This striking cove moulding 3-29/32" - 2 measures 3.906" wide by .813" thickness, permitting the pattern to be machined out of four quarter lumber. The asymmetrical terminating profile is comprised of a 2-7/8" radius cove in the center, the upper portion retains a 3/8" tall vertical line on the top left, with a 7/16" wide horizontal line segment at the bottom right side of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3" tall with a projection of 2-1/2" wide.

Whether you have a Weinig R960 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.906" / Depth of Cut = .522" (top knives).

Thickness = .812" / Depth of Cut = .467" (right blades) & .608" (left cutters.)
