Cove Moulding 3-17/32"

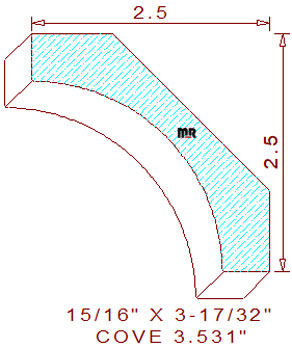

This elegant cove moulding 3-17/32" measures 3.536" wide by .937" thickness, necessitating the use of five quarter lumber for milling on an industrial moulder. The symmetrical profile is composed of a 1/2" tall vertical line segment on the top left, connected to a two inch radius cove in the center, joined to a 1/2" wide horizontal line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-1/2" tall with a projection of 2-1/2" wide.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.562" / Depth of Cut = .569" (top knives.)

Thickness = .937" / Depth of Cut = .601" (right blades) & .601" (left cutters.)
