Cove Moulding 2-17/32"

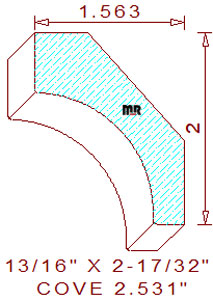

This custom cove moulding 2-17/32" measures 2.531" wide by .812" thickness, enabling the detail to be machined sprung (laying horizontally flat) out of four quarter lumber. The asymmetrical profile composes a 1-1/4" cavetto in the center, flanked by a 5/8" vertical line on top and a 5/16" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-two and forty-eight degrees, these specific back bevels set the installed height at 2" tall with a projection of 1-9/16" wide.

You will be able to manufacture high speed steel or carbide profile knives literally within minutes after downloading this beautiful pattern from the purchase dxf file link below. Check out our updated tooling and supplies catalog for other high quality products we supply for your moulder and knife grinding room, all with competitive pricing and fast shipping options.

For knife quoting purposes click to open the calculator below, we have added only the important measurements; please enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.531" / Depth of Cut = .495" (top knives.)

Thickness = .812" / Depth of Cut = .370" (right blades) & .653" (left cutters).
