Chair Rail 5-1/4" - 6
Chair Rail 5-1/4" - 6

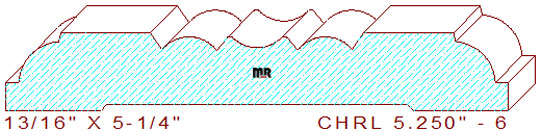

This fascinating 5-1/4" - 6 chair rail/door casing measures 5.250" width by .812" thickness, needing a 5-1/2" wide blank of four-quarter lumber for milling on an industrial moulder. The intriguing symmetrical profile contains a 3/8" cove flanked by down-sloping angled line segments on the top center. The canted edges are flanked by a 9/16" broad convex arc with up-slopes that connect to a 15/16" broad flat line with a 3/32" vertical step. Each side edge of the pattern retains a 7/16" convex arc joined to a 9/64" fillet, leaving a 19/64" thickness dimension.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.521
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
