Chair Rail 4-15/16"
Chair Rail 4-15/16"

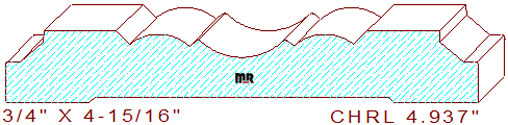

This fascinating 4-15/16" chair rail measures 4.937" width by .750" thickness, requiring a 5-3/16" wide blank of four-quarter lumber for milling on an industrial moulder. The beautiful symmetrical profile comprises a 5/8" radius concave semicircle flanked by short beveled lines connected to a 1/2" convex arc with slightly larger angled lines in the middle. The center joins a 3/4" broad fillet with a 7/64" vertical step attached to a recessed chamfer and a 5/32" eased edge fillet on both the design's right and left sides.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.937
Depth of Cut: 0.531
Bottom Cutter Head
Width: 4.937
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
