Chair Rail 4-3/8" - 6

Chair Rail 4-3/8" - 6

Chair Rail 4-3/8" - 6

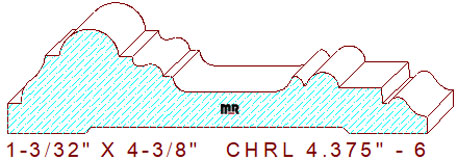

This extravagant 4-3/8" - 6 Victorian chair rail measures 4.375" wide by 1.093" thickness, allowing the pattern to be milled from five-quarter lumber. The intricate profile is composed of a 5/8" wide half-round circle joined to a 9/64" broad segment with two tangent radius cyma recta and another 9/64" broad area on the left side, the center of the pattern consists of short cyma recta flanked by tiny horizontal lines on the left with a bidirectional congee that transitions into a small beak shape merged with a half round bead, the right side of the design is made up of a 15/32" wide by 5/32" deep step lines joined to a tiny sunk fillet with a small cyma reversa, leaving an 11/64" thickness dimension on edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.375
Depth of Cut: 0.915
Bottom Cutter Head
Width: 4.375
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$319.75
$299.25
Total:
$619.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.25
$319.75
Total:
$660.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$360.75
$340.25
Total:
$701.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
