Chair Rail 4-1/4" - 16
Chair Rail 4-1/4" - 16

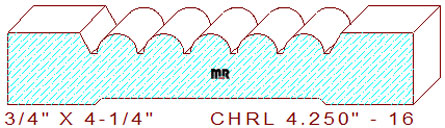

This 4-1/4" - 16 beaded chair rail measures 4.250" wide by .750" thickness, enabling the detail to be milled from four-quarter lumber. The symmetrical profile is composed of five recessed 27/64" wide half-round circles divided by six 1/16" wide sunk fillets in the center, attached to a 1/8" wide bevel that connects to a three-quarter inch broad segment on each side edge of the pattern. We offer this same detail in a four-inch width for your review and consideration,
chair rail 4.000" - 34, the differences are, it has a one-eighth inch shorter width per side, and the edges have 1/8" round-overs.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.224
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
