Chair Rail 4-1/4" - 15
Chair Rail 4-1/4" - 15

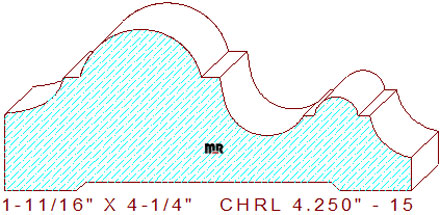

This stylishly bold 4-1/4" - 15 chair rail measures 4.250" wide by 1.687" thickness, requiring eight-quarter lumber for milling on an industrial molder. The intricate profile is composed of a 1-9/32" wide half-round circle on top, connected to an 11/64" broad line and an elliptically shaped cove on the left side. The center retains a 29/64" radius scotia flanked by small flat lines, the right side consists of a 29/64" wide half round bead with a 1/8" broad area and a 17/32" cove.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.687
Depth of Cut: 0.442
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 1.109
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
