Chair Rail 4-1/4" - 11
Chair Rail 4-1/4" - 11

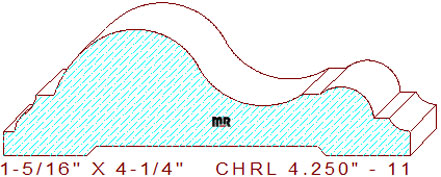

This beautifully bold 4-1/4" - 11 chair rail measures 4.250" wide by 1.312" thickness, allowing the detail to be machined out of six-quarter lumber. The graceful profile is composed of a dignified three tangent radius cyma reversa in the center, attached to a 3/16" wide fillet that joins to a small two tangent radius ogee and a 1/8" line segment on the left, the opposite side consists of another 3/16" wide fillet attached to a down-sloping 9/16" quarter round arc, merged with a 5/32" broad area and a 1/4" cove, leaving a 1/4" thickness dimension on both sides of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 1.063
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
