Chair Rail 4-1/16"
Chair Rail 4-1/16"

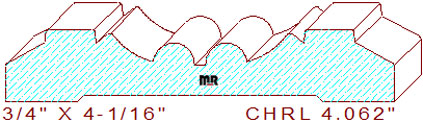

This ornate 4-1/16" chair rail measures 4.062" width by .750" thickness, enabling the use of four-quarter lumber for milling on a commercial-grade molder. The intricate symmetrical pattern contains two 7/16" wide half-circles that are divided by a 7/64" sunk fillet in the center. The beads join to a 3/4" radius concave semicircular arc merged with a tiny pointed line and a 17/32" by 9/64" tall raised fillet attached to a 28.506 beveled line with a 3/64" eased edge, leaving a 3/8" thickness dimension on both sides of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.062
Depth of Cut: 0.344
Bottom Cutter Head
Width: 4.062
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
