Chair Rail 4" - 72
Chair Rail 4" - 72

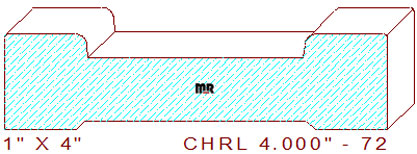

This AWI 2043 casing/chair rail 4" - 72 measures 4.000" wide by 1.000" thickness. The modern symmetrical profile is composed of a 2-1/4" wide by 1/4" deep sunk fillet in the center, flanked by a 1/8" radius round over that transitions into a 7/8" wide raised fillet with 3/64" eased edges on each side of the design. We offer another width of this casing for your review and consideration,
symmetrical casing 4.125". The Architectural Woodwork Institute (AWI) doesn't designate width or thickness dimensions on any profiles in their moulding catalog. That decision is up to the client who uses those specific designs; there is no standard size; it is whatever you desire.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.250
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
