Chair Rail 4" - 56
Chair Rail 4" - 56

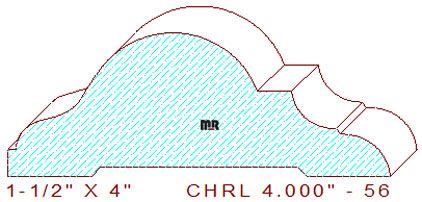

This massive 4" - 56 chair rail measures 4.000" wide by 1.500" thick; the profile consists of a thumbnail round bead on one side with an attached fillet, and the other side has a 3/8" wide fillet, cove, chamfer, and a quarter round bead. The pattern is too big to make a single cut on a conventional moulder. Therefore, the pattern is split between two profile milling stations on the left vertical and top horizontal cutterheads.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.500
Depth of Cut: 1.035
Top Cutter Head
Width: 4.000
Depth of Cut: 1.216
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
