Chair Rail 4" - 39
Chair Rail 4" - 39

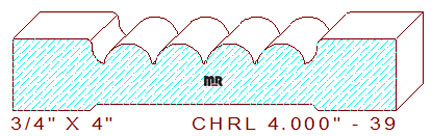

This 4" - 39 four-bead chair rail measures 4.000" wide by .750" thickness. The symmetrical profile is comprised of four recessed 1/2" wide half-round circles connected by 1/32" wide fillets in the center of the pattern, flanked by a 3/16" radius cove, attached to a 1/16" radius eased edge which is tangent off of a 13/16" wide horizontal fillet on each side.
Architects, interior designers, lumber mills, and manufacturers have been utilizing our wide variety of creative knife designs for years. We trust you will find that unique profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.261
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
