Chair Rail 3-15/16" - 3
Chair Rail 3-15/16" - 3

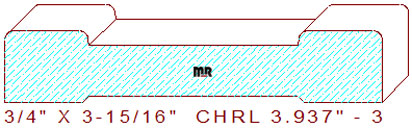

This basic 3-15/16" - 3 chair rail measures 3.937" width by .750" thickness, enabling the use of four-quarter lumber for machining on an industrial-grade molder. The simplistic symmetrical profile contains a 2-3/16" wide by 5/32" deep sunk fillet in the center, flanked on each side by a 7/8" raised fillet with 3/32" rolled edges on the corners. We also offer an alternative pattern that’s slightly larger in width for your review and consideration,
chair rail 4.375" - 10.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.937
Depth of Cut: 0.249
Bottom Cutter Head
Width: 3.937
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
