Chair Rail 3-3/8" - 1
Chair Rail 3-3/8" - 1

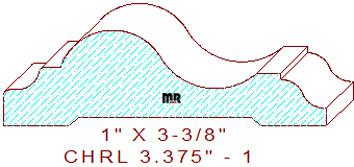

This visually stunning 3-3/8" - 1 chair rail measures 3.375" width by 1.000" thickness, necessitating the use of five-quarter lumber for milling on a commercial-grade molder. The sumptuous profile contains a 1/4" cove at a 3/8" thickness dimension with a 3/16" whole fillet on the top left, attached to a gracefully downsloping s-shaped curvature derived from two tangent radiuses in the center and connected to a 1/4" wide by 1/8" tall raised fillet and two tangent 1/4" radii forming the ogee with a 3/64" eased edge, leaving a 3/16" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.977
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
