Chair Rail 3" - 42

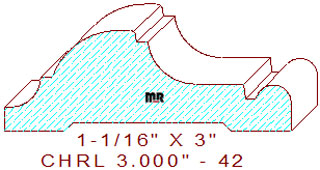

This fashionable chair rail 3" - 42 measures 3.000" wide by 1.062" thickness, enabling the pattern to be machined out of five quarter lumber. The high-toned beak style profile is composed of a 5/16" cove at a 1/4" thickness dimension, and a 1/8" wide horizontal line on the top left, connected two a 47/64" radius semicircular arc shaped like a beak with a 1/8" by 1/8" notch in the center, attached to a one-inch wide congee made from a 1/2" radius cove with a 5/32" vertical drop in elevation, merged with a 1/8" wide sunk fillet and a 3/8" wide half round bead on the right side of the design.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability, knowledge, and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions to feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .913" (top knives) & .093" (bottom cutters).
